You've seen the headlines.

  • “Electricity prices go negative”
  • “The power bill goes up again”
  • “Wind farms paid to switch off”

Each one is true some of the time. None of them tells you how often, for how long, or who ends up paying.

  • How often does power cost less than nothing?

    Answered in The Daily Rhythm
  • What's in a household power bill?

    Answered in The Bill
  • Why is wind power turned down, and what does that cost?

    Answered in Geography of Price

Wattlas

It answers those from open European market data. Every figure names its window and keeps its caveat on screen. Most figures are refreshed from the sources on the 1st and 15th of each month, and each view gives the dates its data covers.

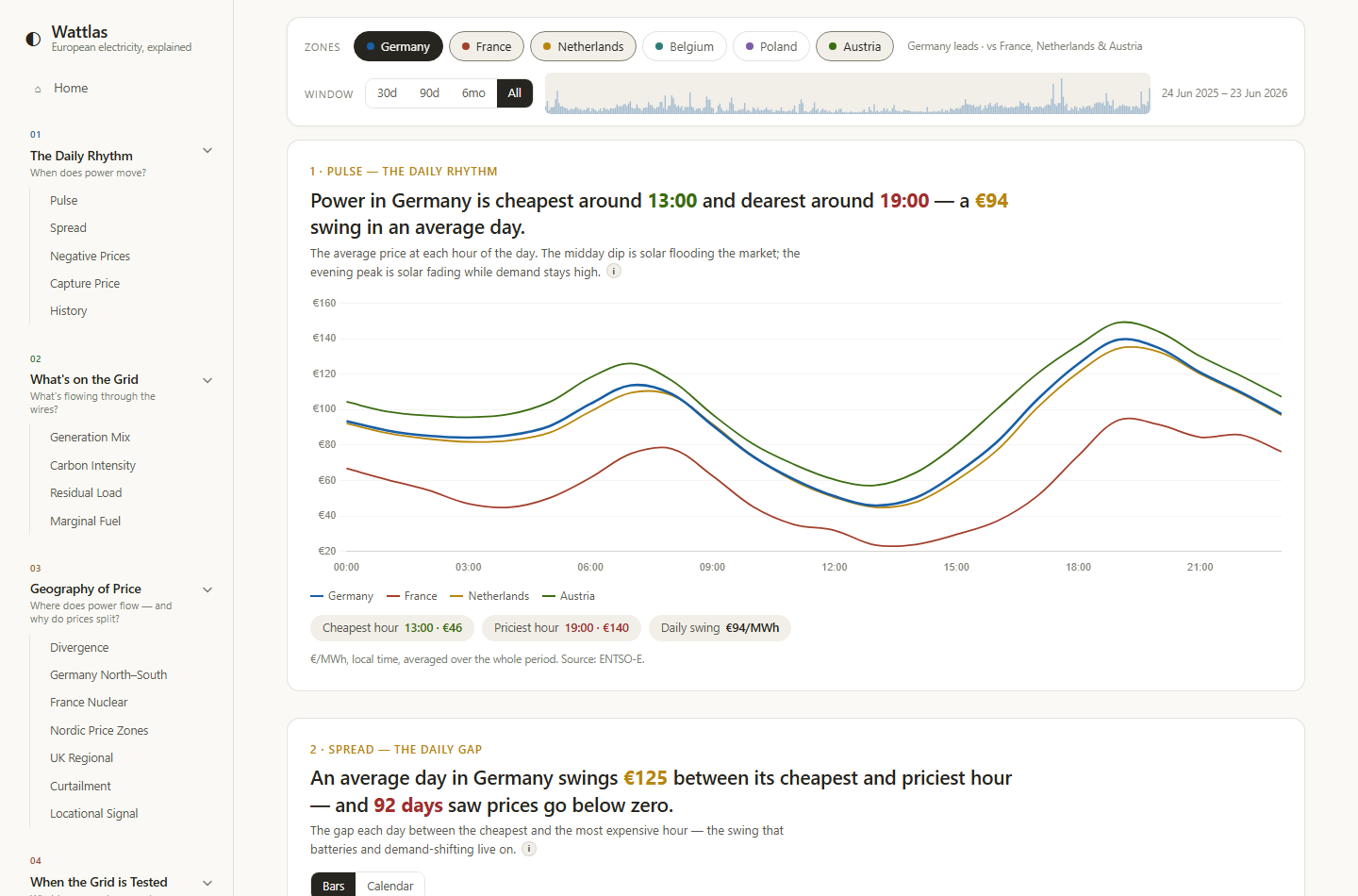

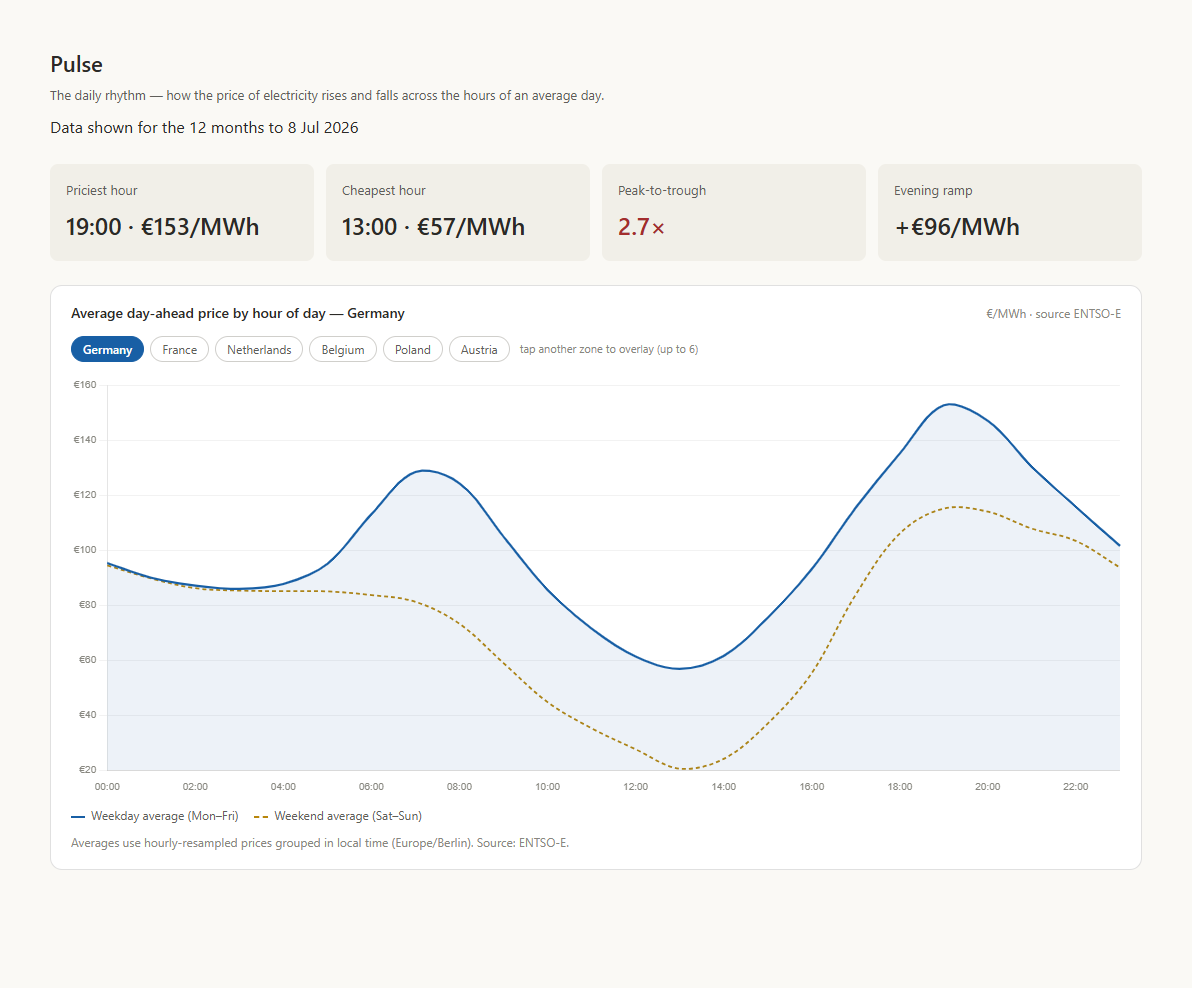

The Pulse view: the average German day-ahead price by hour of day
Open the live view: wattlas.net/pulse

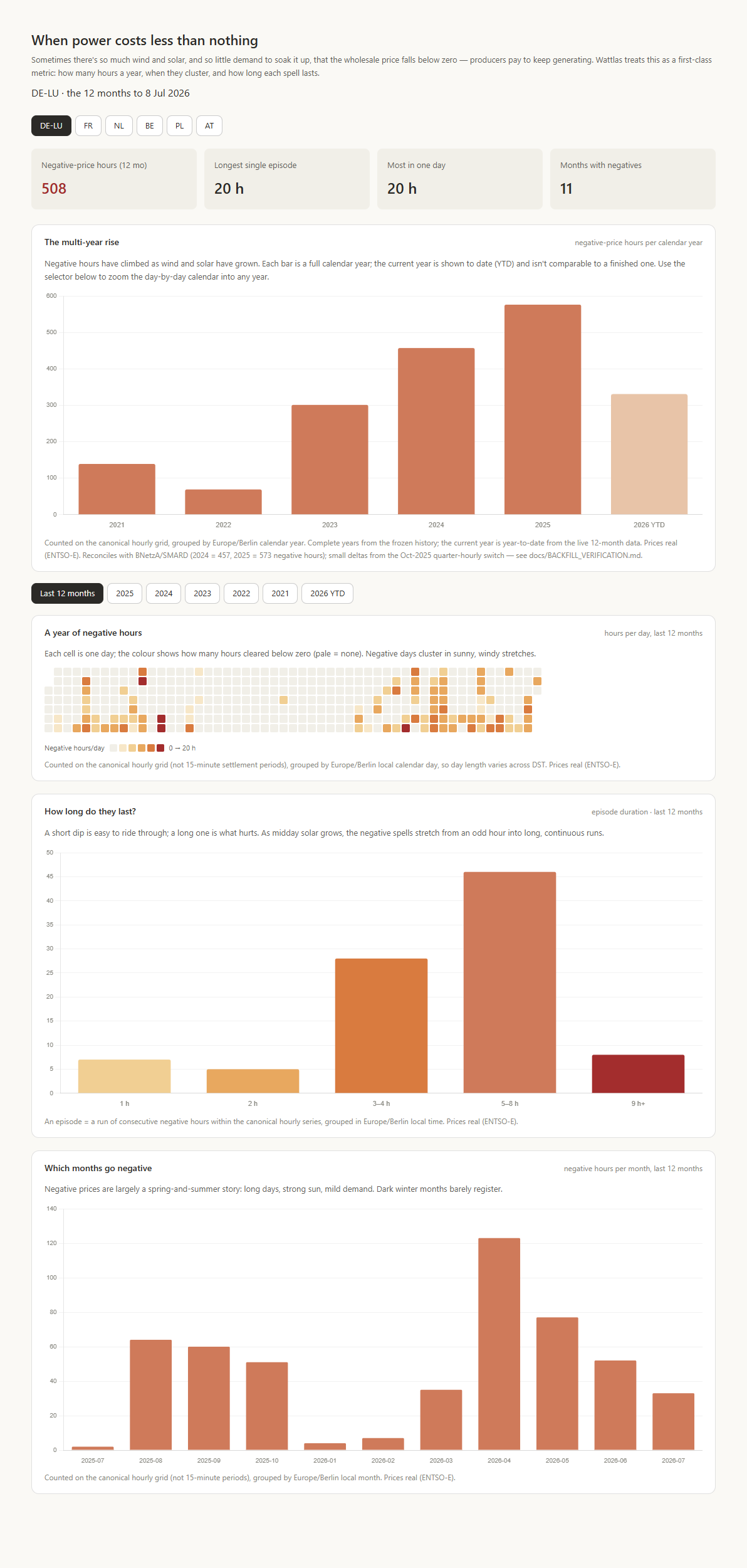

How often does power cost less than nothing?

The day-ahead price, the wholesale price set the day before, fell below zero in Germany in 139 hours of 2021 and 576 hours of 2025, counted per calendar year. The Bundesnetzagentur, the federal regulator, counts 573 for 2025. In each of those hours, sellers paid buyers to take their power. Most fall around midday in spring and summer, when solar output peaks.

139 → 576negative-price hours a year

Negative-price hours per calendar year in Germany
Open the live view: wattlas.net/negative-prices

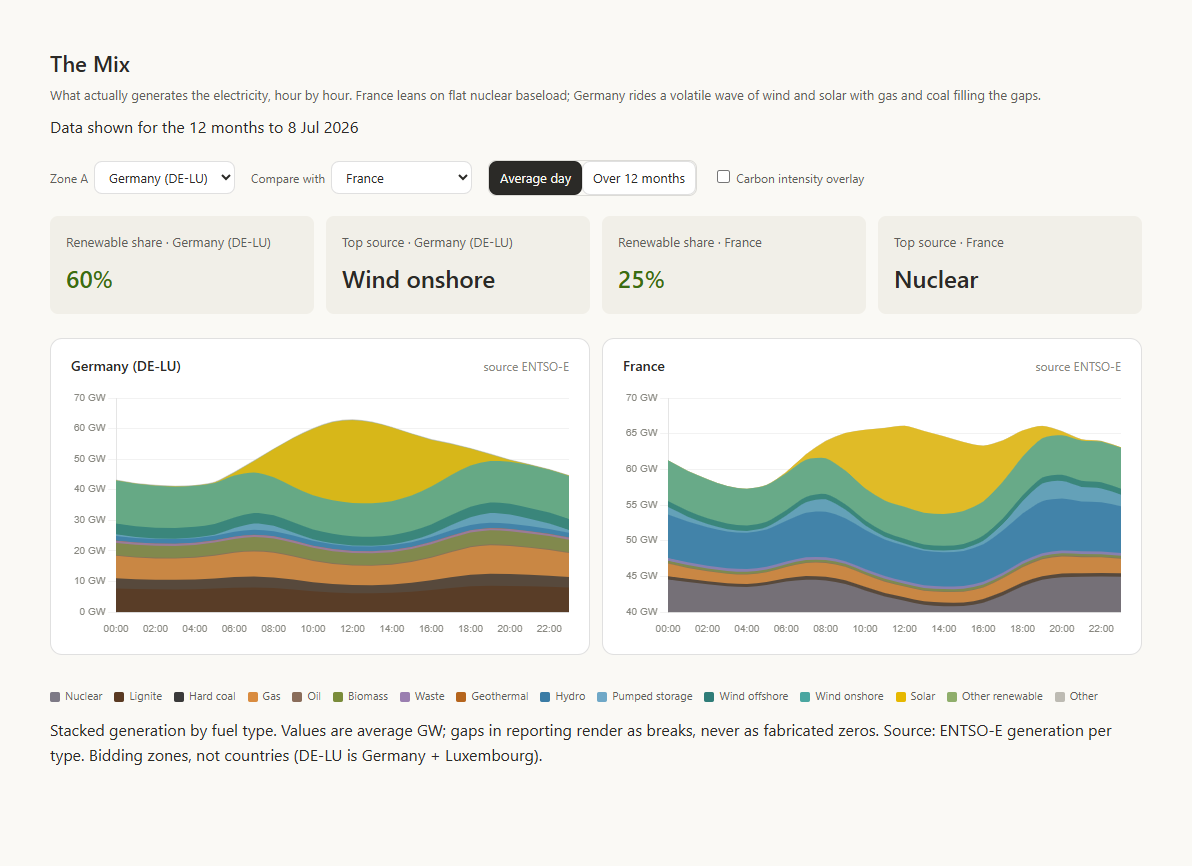

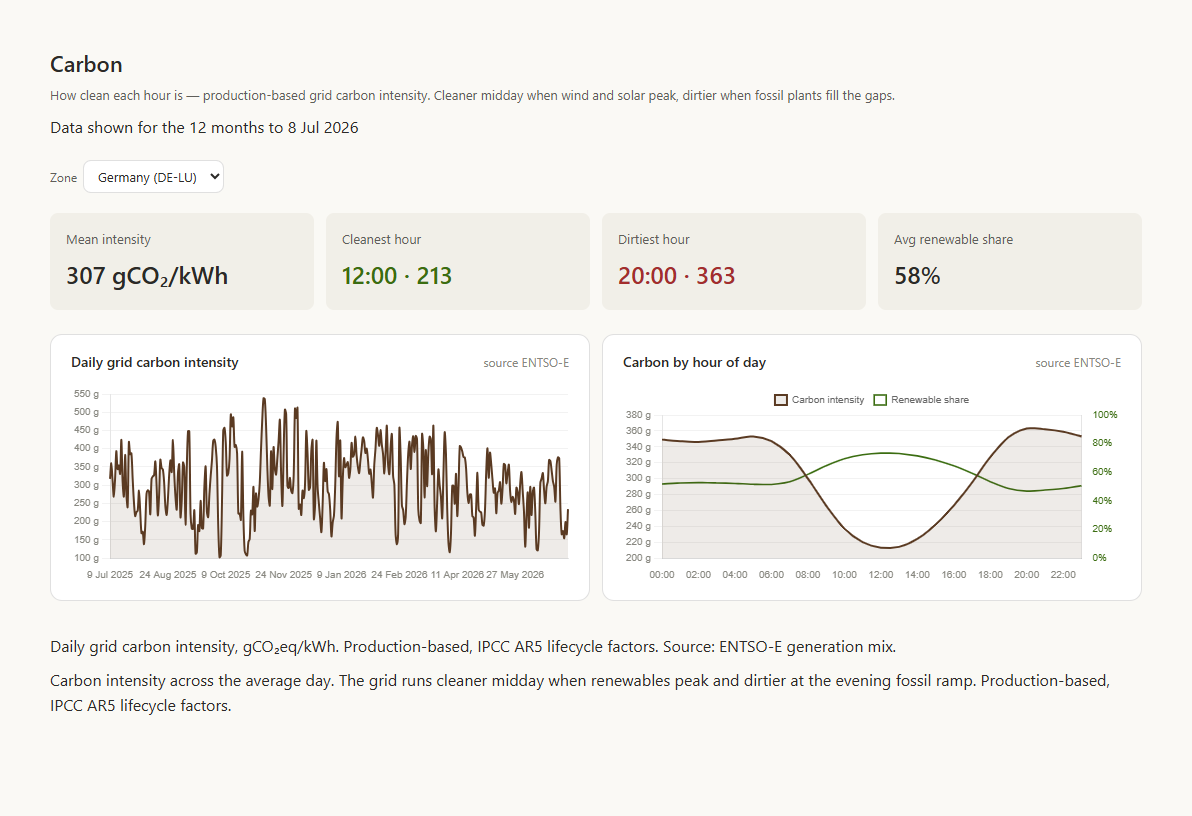

How clean is the power on the wire?

It depends on what is generating it, hour by hour. Over the year to 14 Oct 2026, a kilowatt-hour generated in Germany carried 307 grams of CO₂ on an average day. One generated in France, mostly by nuclear plants, carried 34. Both are counted over each plant's lifecycle.

307 vs 34gCO₂/kWh, Germany vs France

Carbon intensity of German electricity by hour of day
Open the live view: wattlas.net/carbon-intensity

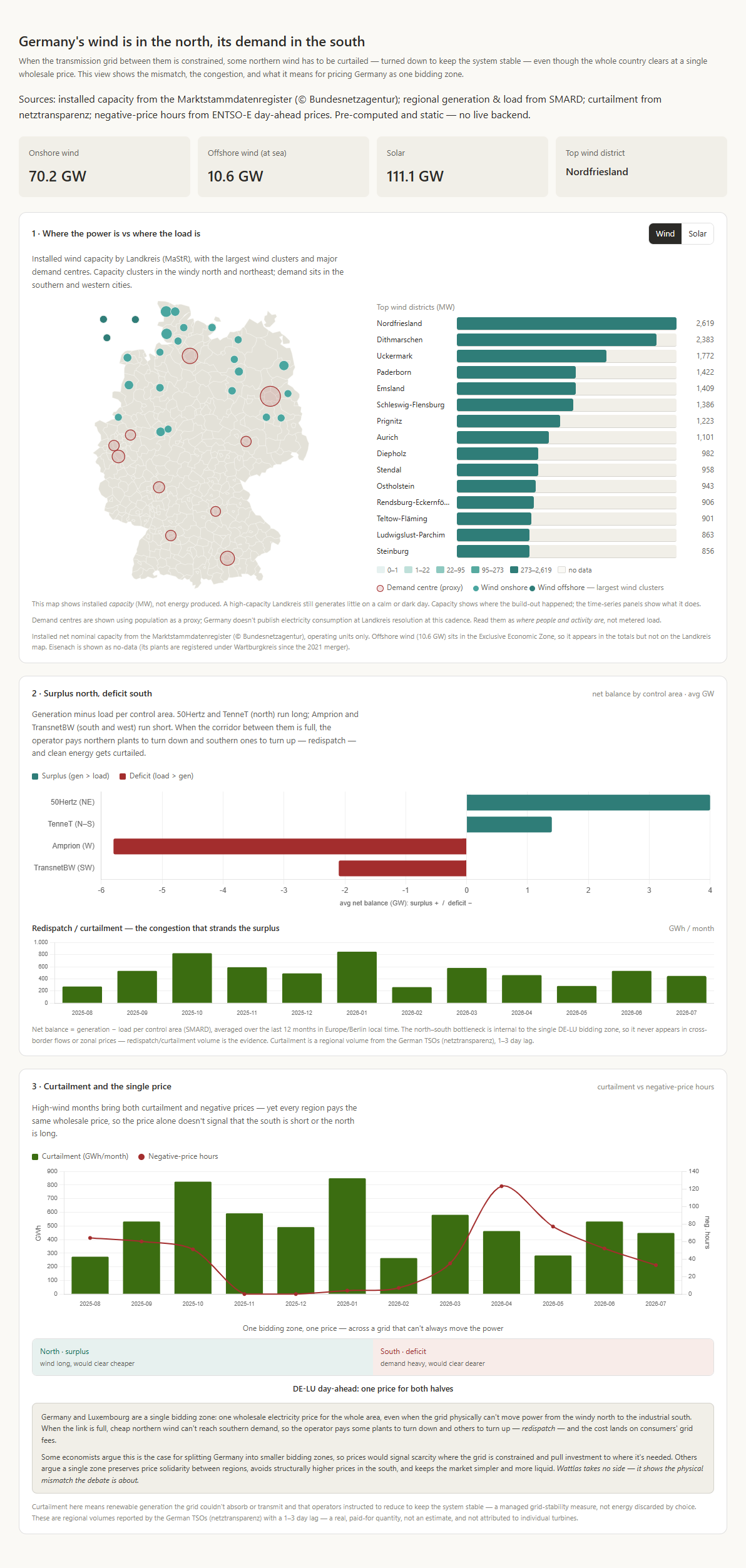

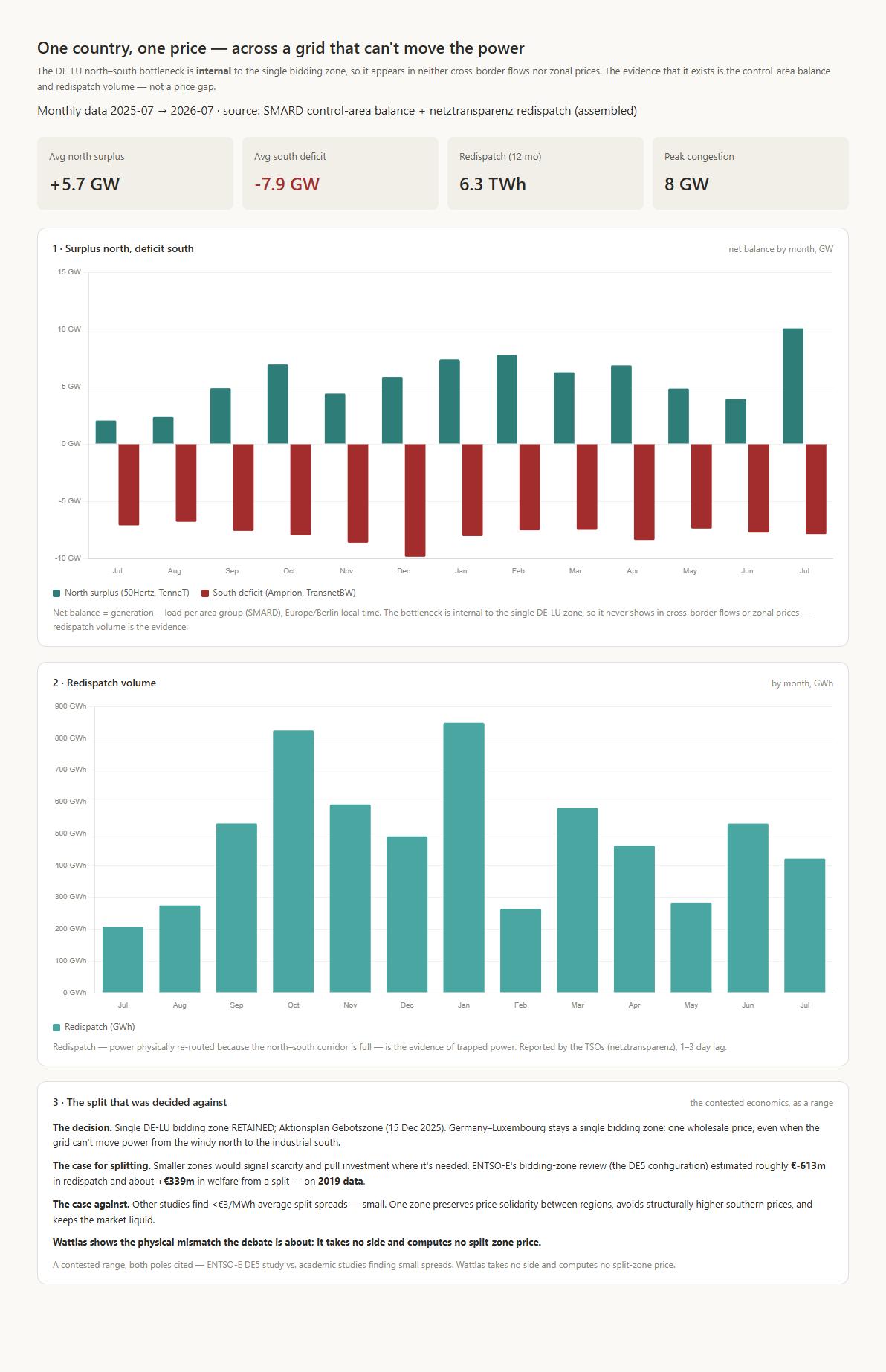

One price for all of Germany. The wind isn't where the demand is.

On 26 Sep 2026 the national register listed 71 GW of onshore wind, 11 GW offshore and 115 GW of solar; the onshore wind and the solar are mapped district by district. Much of the wind is in the north, much of the industry in the south, and the lines between them can't always carry the power. The grid operators then redispatch: they turn some plants down and others up to keep the system stable.

Installed wind and solar capacity mapped across German districts
Open the live view: wattlas.net/germany-north-south

Three neighbours, three answers to the same problem

Germany keeps one price across the whole country. Its neighbours made their own choices, and each one shows up in the data.

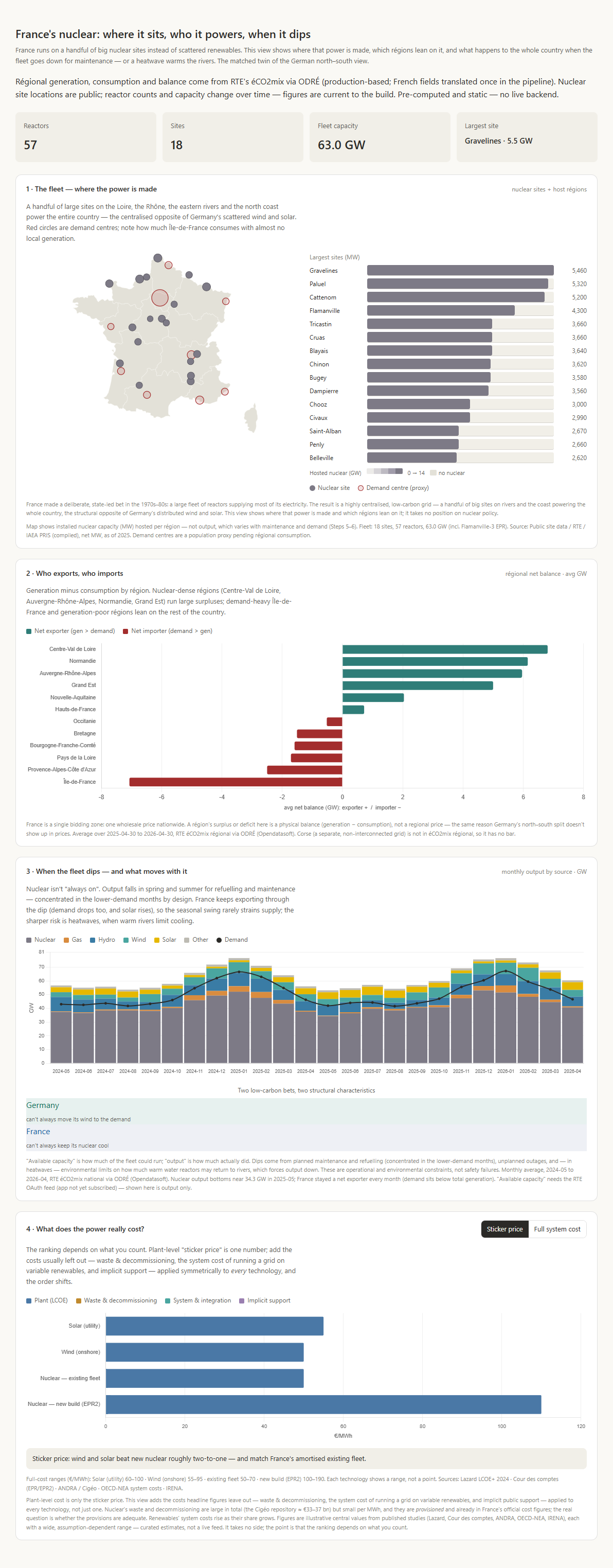

France generates centrally

A nuclear fleet spread across the régions supplies most of the country, and France exported more than it imported in every month from Sep 2024 to Aug 2026. Output dips each spring and summer, when reactors stop for refuelling and maintenance.

France's nuclear plants mapped across its régions
Open the live view: wattlas.net/france-nuclear

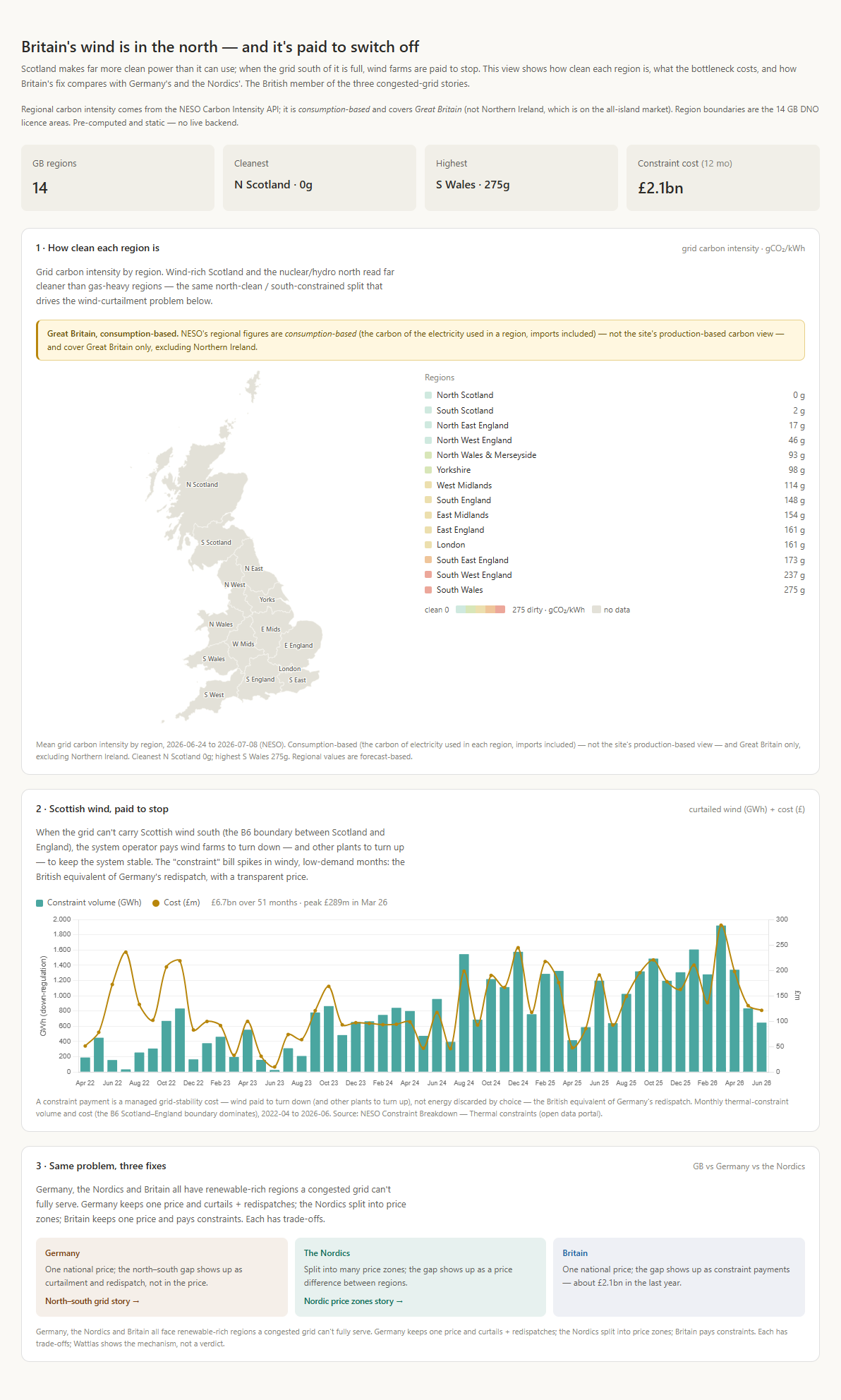

Britain keeps one price too

It pays to manage the bottleneck: £7.6 billion of thermal-constraint costs from Apr 2022 to Oct 2026, mostly to turn Scottish wind down when the lines south are full and other plants up in its place.

Scottish wind constraint volume and cost per month
Open the live view: wattlas.net/uk-regional

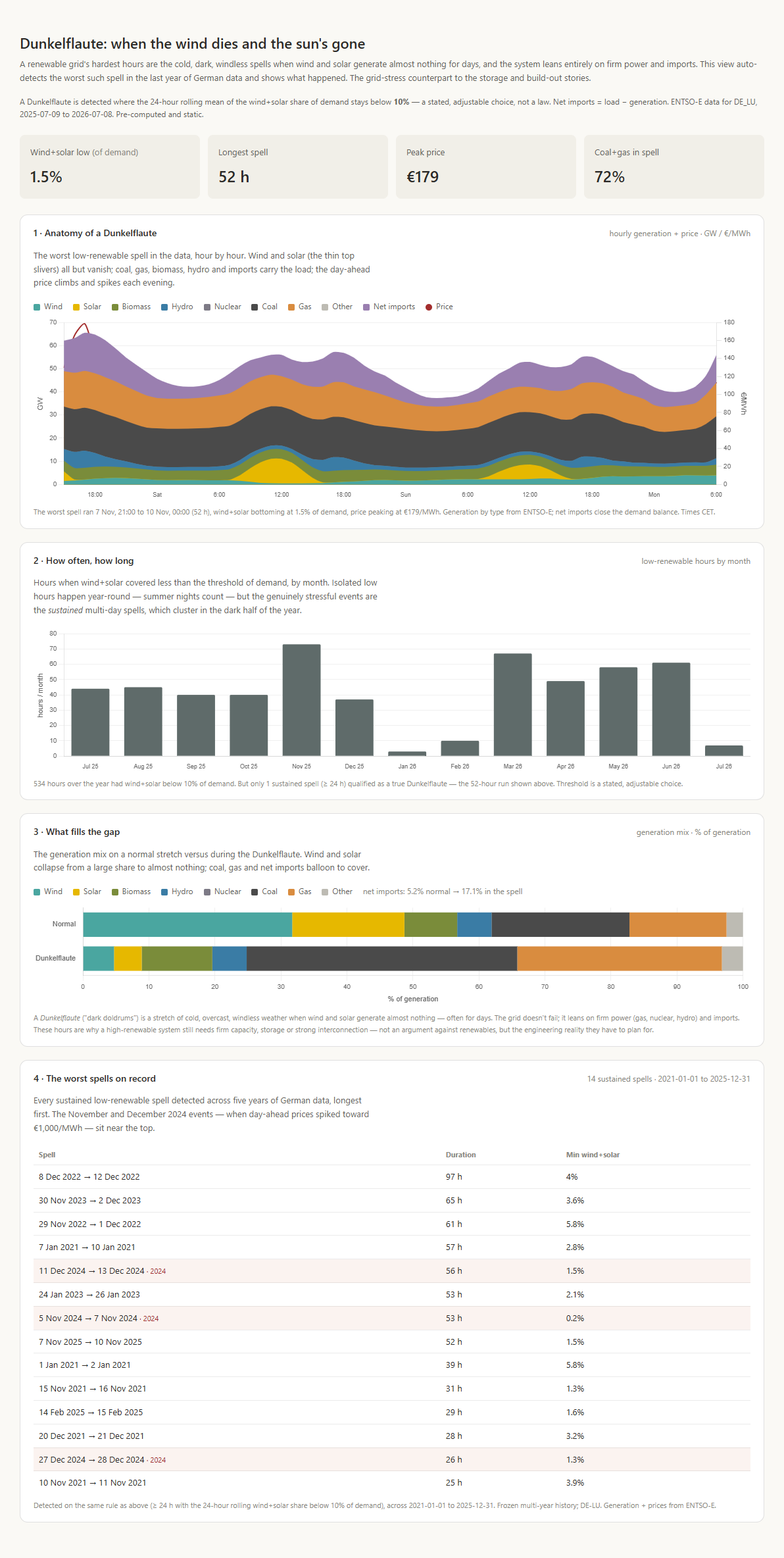

What happens when wind and solar vanish for days?

Wattlas counts a Dunkelflaute, German for a dark and windless spell, when wind and solar cover less than 10% of demand for at least 24 hours. Germany had 14 between 1 Jan 2021 and 31 Dec 2025. The longest, in Dec 2022, ran 97 hours: coal met about half of demand and gas about a sixth, and biomass, nuclear, hydro and imports covered most of the rest.

14spells on record, longest 97 h

A Dunkelflaute spell: generation by fuel and the price during the longest spell on record
Open the live view: wattlas.net/dunkelflaute

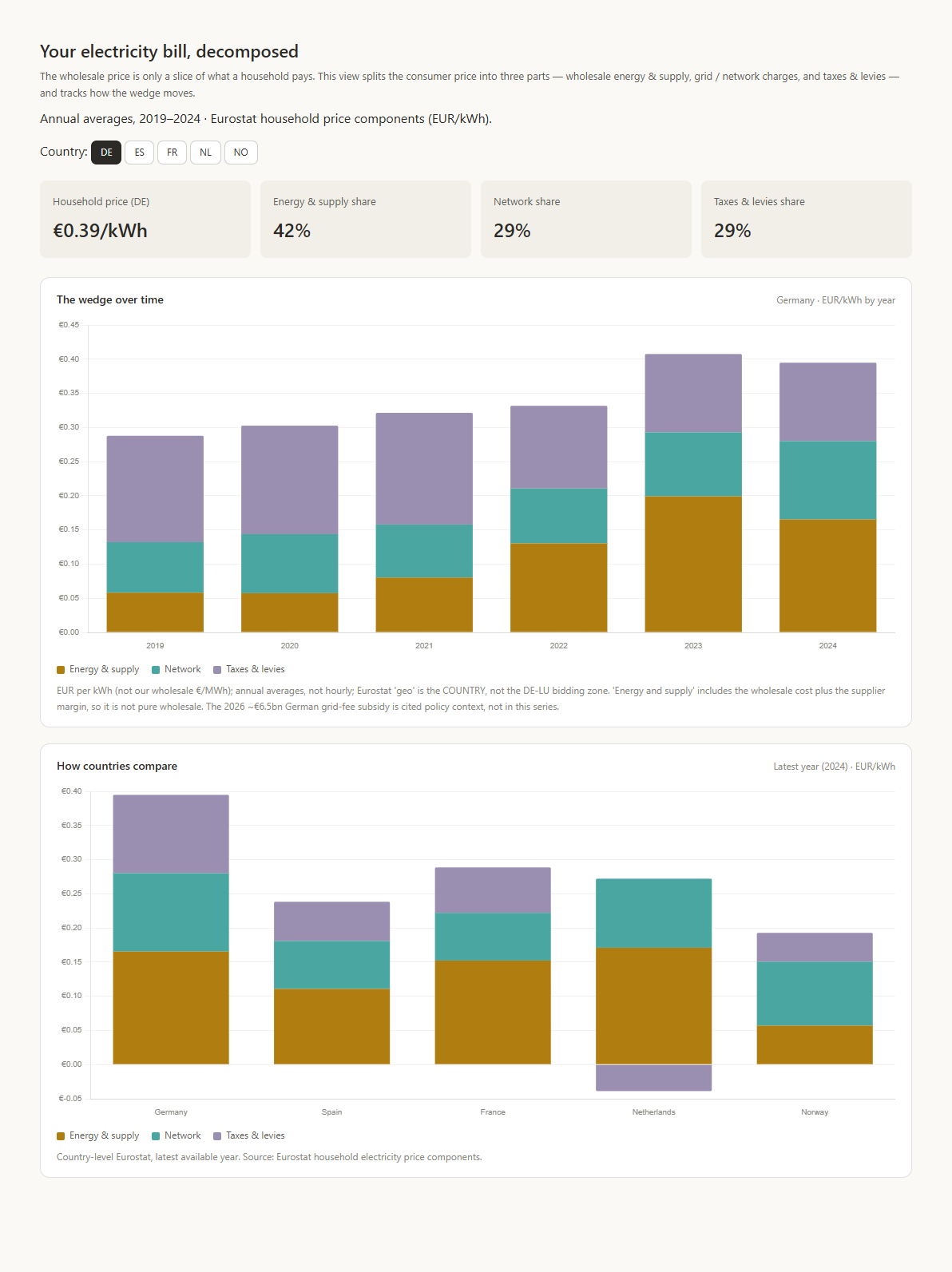

What's in a household electricity bill?

A German household in Eurostat's middle consumption band paid 38.5 ct/kWh in 2025, all taxes included. The energy itself was 14.8 ct of that. Network charges added 11.3 ct, and taxes and levies 12.4 ct.

The household electricity bill split into energy, network charges and taxes, by year
Open the live view: wattlas.net/electricity-bill-breakdown

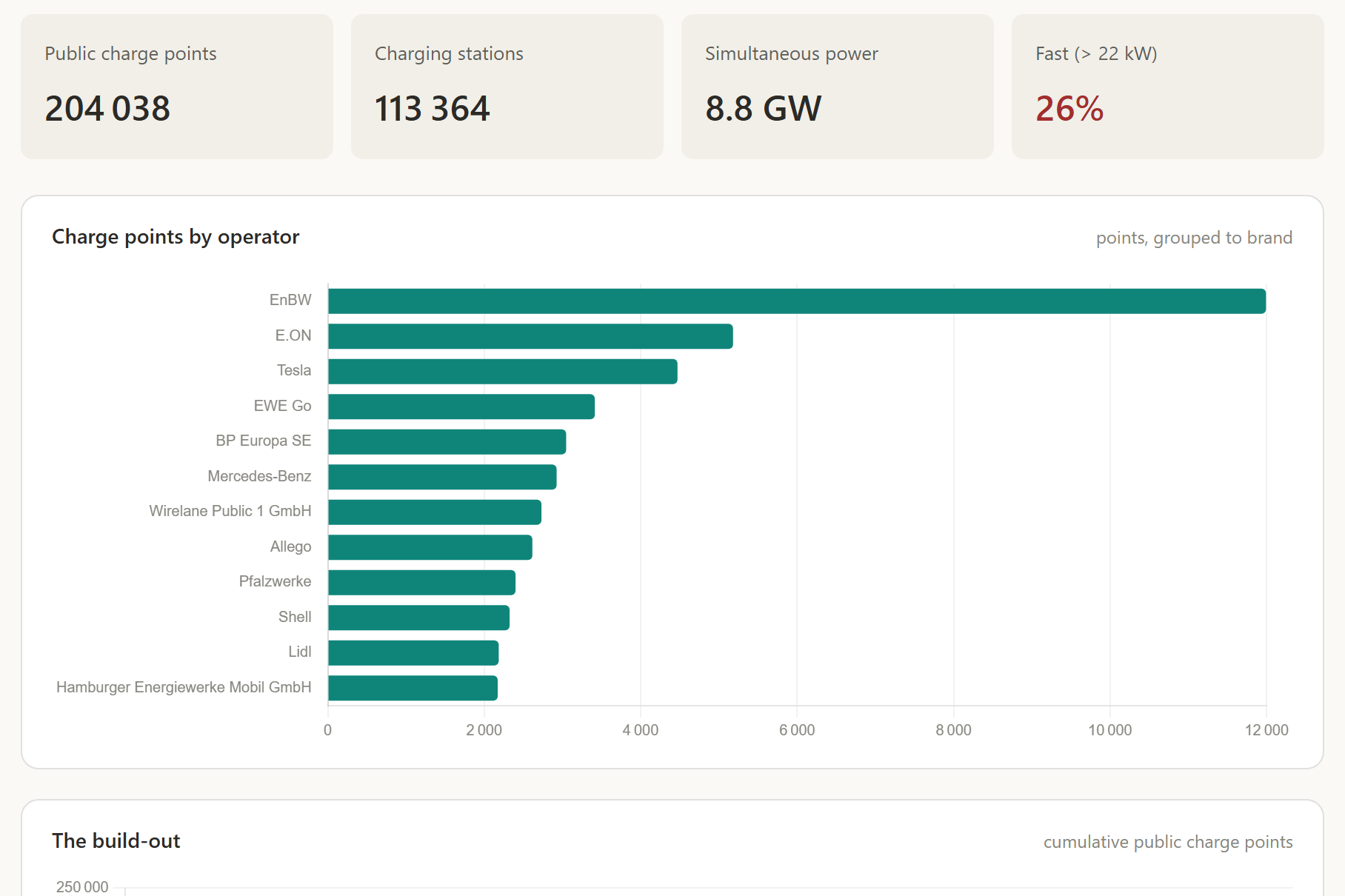

Where can you charge an electric car in Germany?

At 209 098 public charge points on the federal register as of 1 Sep 2026, each placed in its district. Most sit in the populous west and south. Private and workplace chargers are outside this count, and points still being registered are missing, so the public network is a little larger.

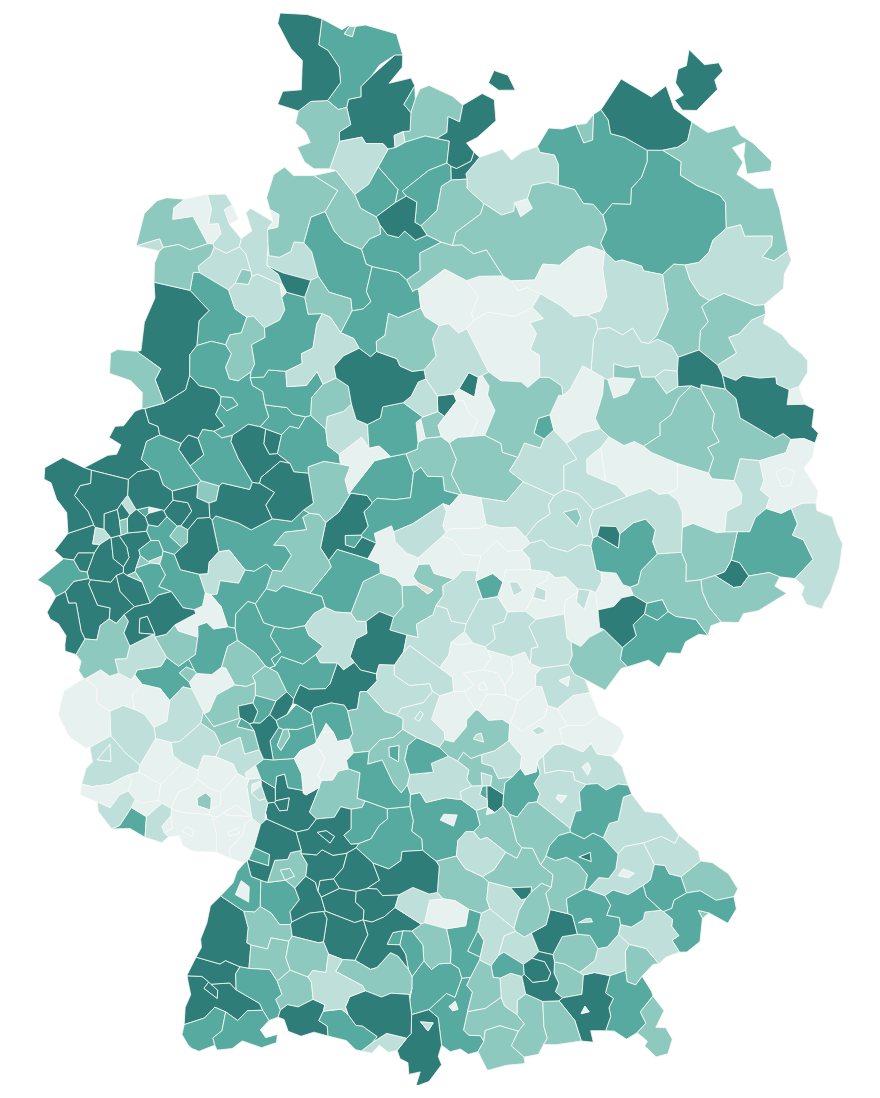

Public charge points per German district, a choropleth map
Open the live view: wattlas.net/ev-charging-network

How much electricity do data centres use?

Ireland meters its data centres, and in 2025 they took 23% of the electricity metered in the country. Most other figures are models, from the IEA and research labs. Each author's series stays its own line, so a measurement is never averaged into a model.

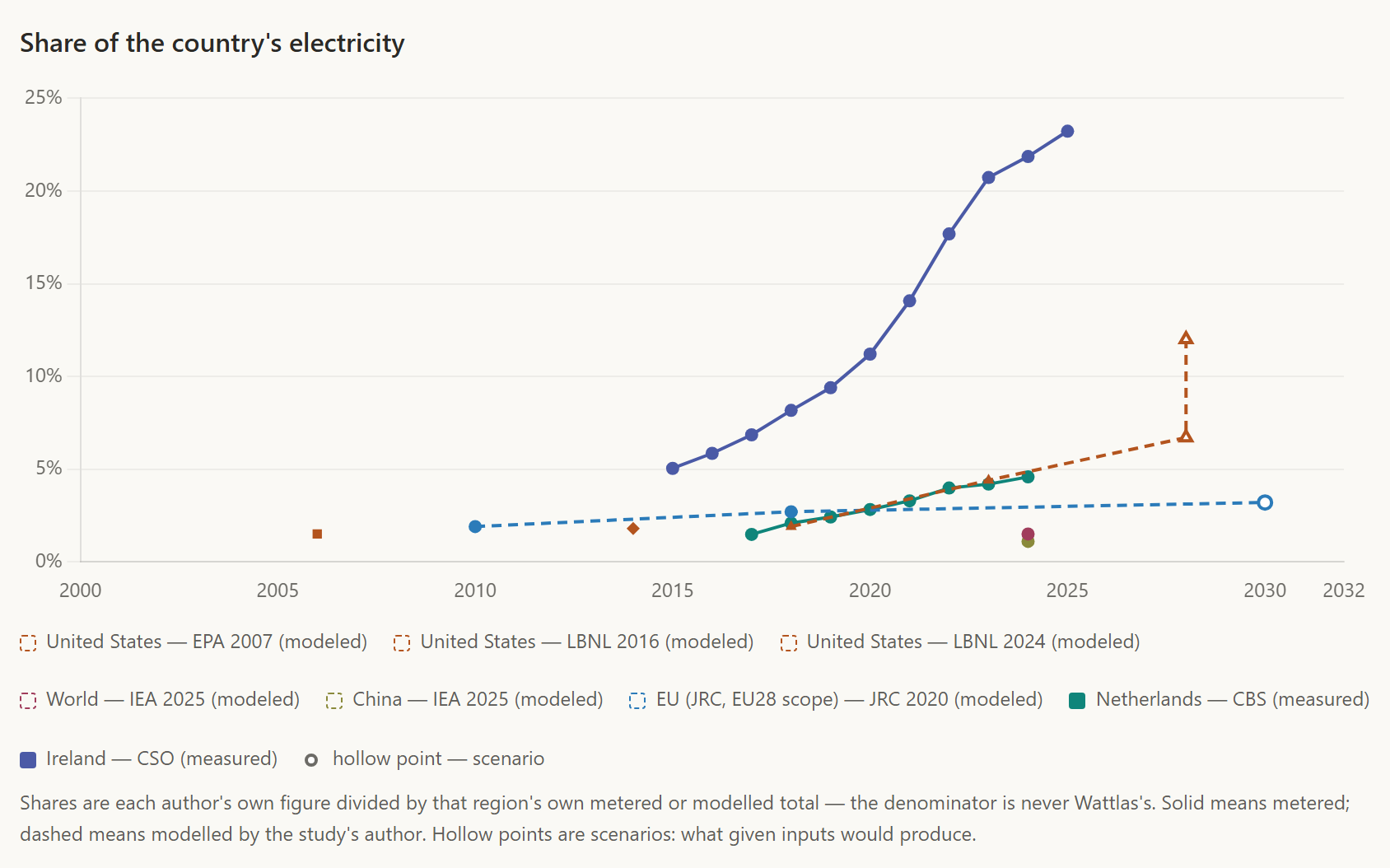

Published estimates of data-centre electricity use, each author's series as its own line
Open the live view: wattlas.net/data-centre-electricity

What gets built, and how fast?

The world ended 2025 with 2 391 GW of solar, more than ten times the 226 GW of 2015, and more than its 2 242 GW of coal. These are Ember's year-end counts.

A gigawatt is a rating. Across 2025 the world's solar fleet produced 13% of what it would running flat out all year, and coal 53%. For a fleet still growing, that share is a lower bound: the year-end count includes panels that ran for part of the year.

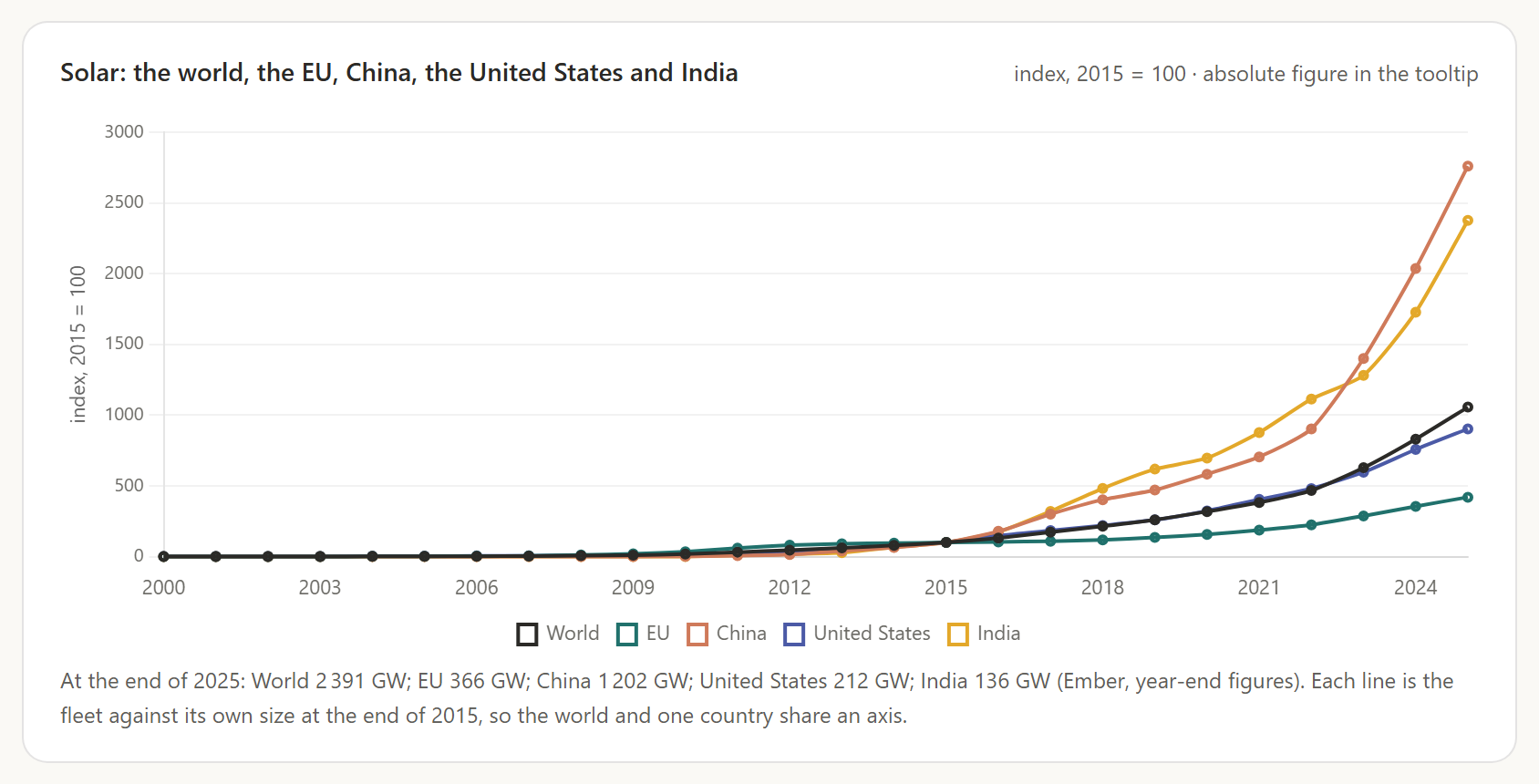

Solar capacity of the world, the EU, China, the United States and India, each against its own size at the end of 2015
Open the live view: wattlas.net/renewable-capacity

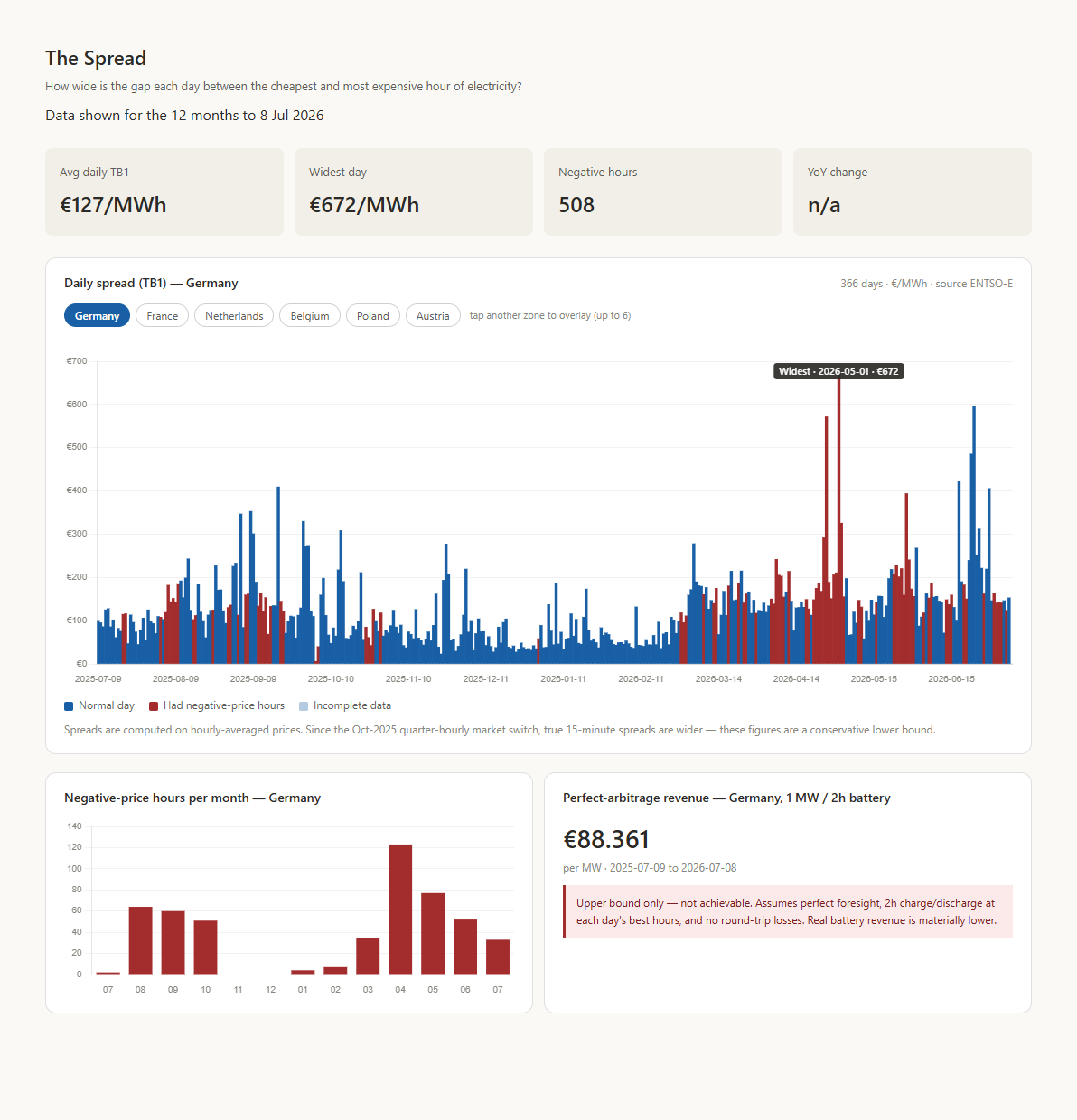

An upper bound is labelled an upper bound

The gap between Germany's cheapest and dearest hour averaged €142/MWh a day over the year to 14 Oct 2026. A 1 MW battery with 2 hours of storage, trading that gap perfectly, would have made €98 855: an upper bound, assuming perfect foresight, no round-trip losses and no price impact.

Real batteries earn less. The page keeps that clause in the same sentence as the figure, wherever the figure appears.

The Spread view: the daily gap between Germany's cheapest and dearest hour
Open the live view: wattlas.net/spread

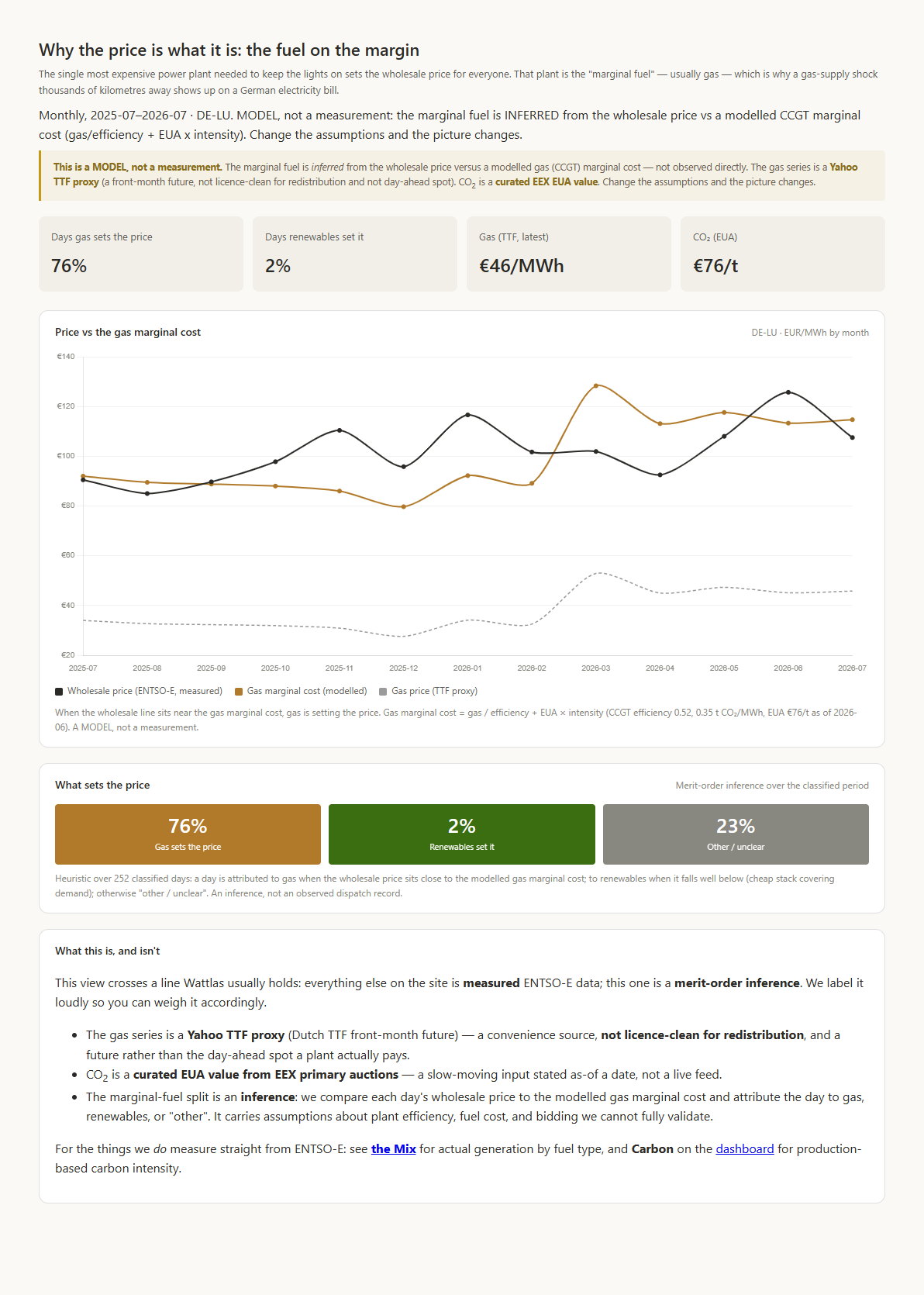

A model is labelled a model

Compare a gas plant's modelled running cost with the day-ahead price, and gas looks to have set Germany's price on 64% of the 351 days the model could classify, Oct 2025 to Sep 2026. This is a model: it infers when gas sets the price, which nobody observes directly.

The assumptions are on the page. The view names the gas price and the carbon price the model used.

Modelled gas-plant cost against the day-ahead price, month by month
Open the live view: wattlas.net/marginal-fuel

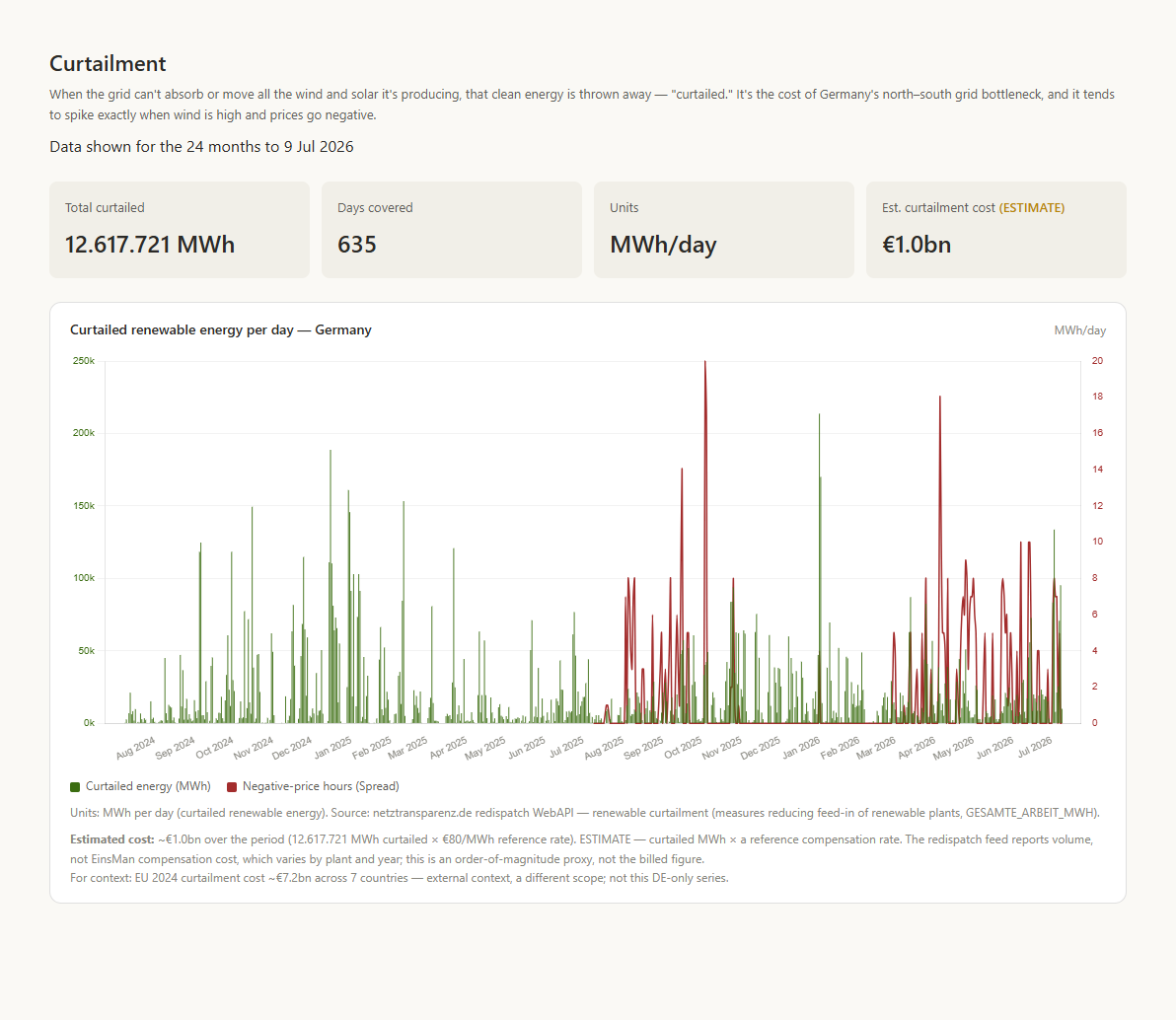

An estimate is labelled an estimate

Germany's transmission system operators recorded 13.9 TWh of curtailed renewable output on the 642 days their feed covers between 15 Oct 2024 and 15 Oct 2026: output turned down as a managed measure to keep the grid stable. That comes to about €1.1 billion, an estimate at a reference rate of €80/MWh.

The feed reports volume only. So the page gives the euro figure as an order of magnitude, and says so beside it.

Curtailed renewable energy per day in Germany
Open the live view: wattlas.net/curtailment

When the data isn't there, the page says so

Where the data is missing, the page shows the gap.

A missing hourIt shows as a gap in the chart.
A source that's downThe view reads “awaiting its source”, and every other view keeps working.
A checked file that failsThe refresh holds it back. The page keeps its last good data, with the dates it covers.
A negative priceIt's kept. Prices below zero are real, so nothing is clipped.

Below the single national price, Wattlas maps four countries' regions

400German districts, each with its installed onshore wind and solar and its public charge points.
12French régions on the mainland grid, each with its nuclear output, its generation and its consumption.

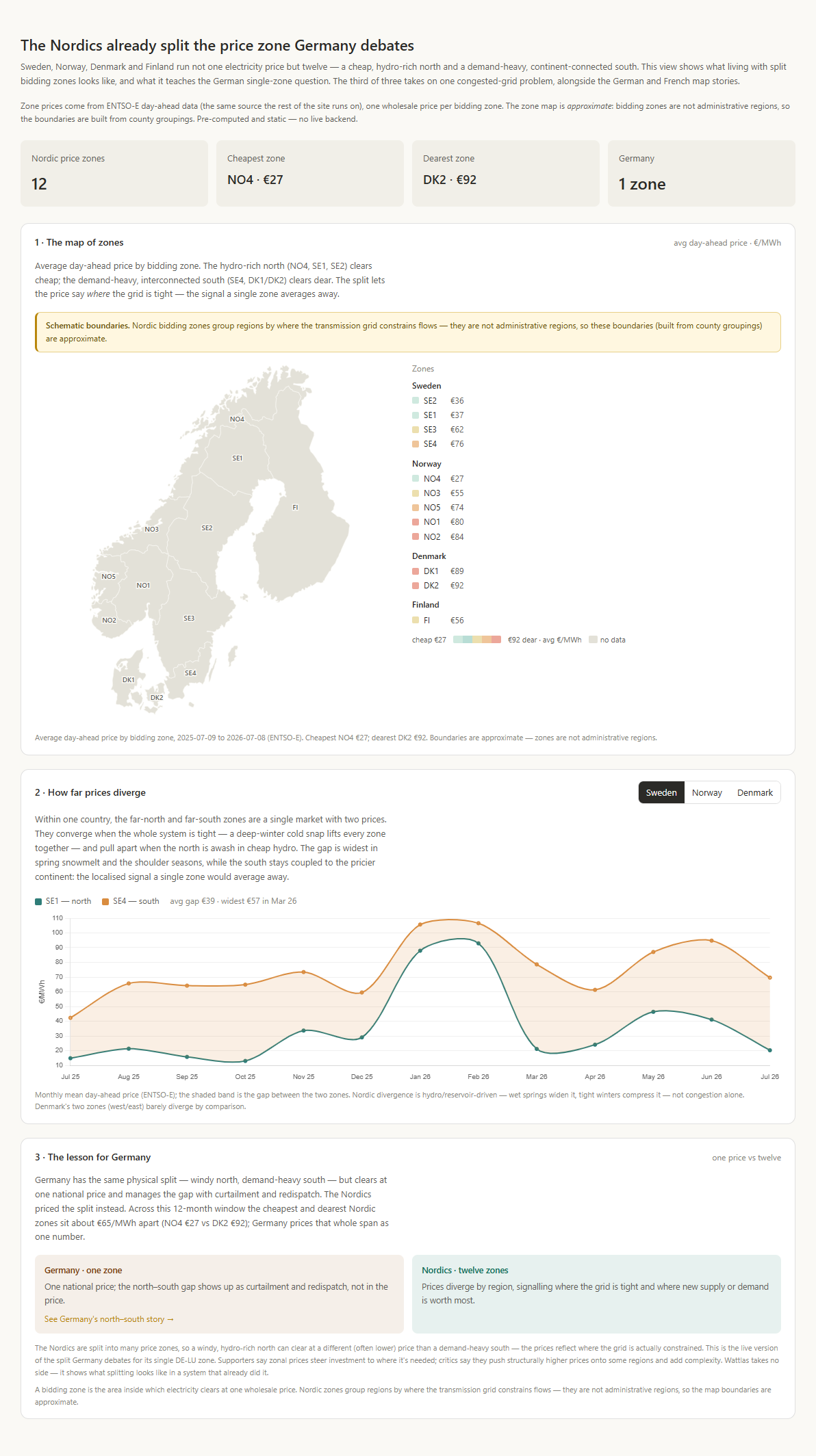

12Nordic price zones, the split-price model Germany debates for itself.
14British regions, each with its own carbon intensity, estimated on a consumption basis from the regional forecast of NESO, Britain's system operator.

Ask the page a question

Almost every view offers three questions it can answer from its own data, and a box for one of yours. The answer is built from the same numbers the chart drew, and it carries the view's caveat in a sentence.

The answers to the suggested questions are written ahead of time from the view's data and checked against it before they ship. A question you type, or one about another zone or window, goes to the language model.

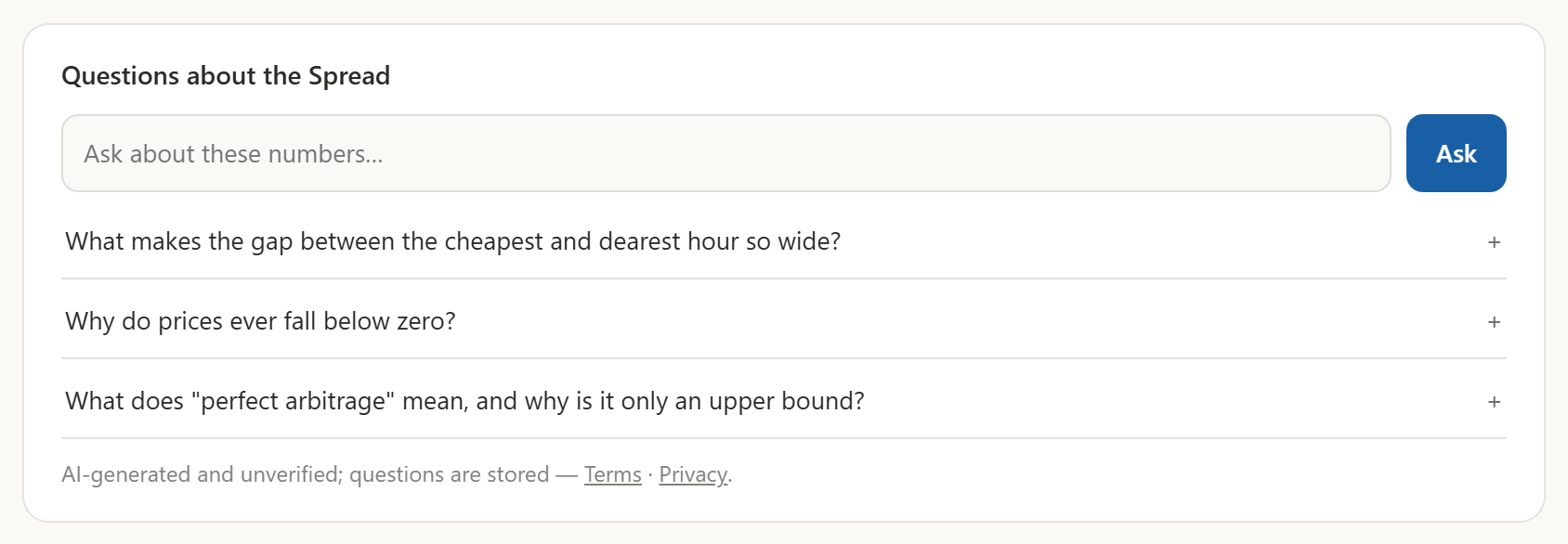

The assistant on the Spread view: three suggested questions and a box for your own
Open the live view: wattlas.net/spread

Built from open data, and each view names its source

  • ENTSO-E
  • Eurostat
  • SMARD
  • Marktstammdatenregister
  • Bundesnetzagentur
  • netztransparenz.de
  • KBA
  • RTE éCO2mix
  • NESO
  • EAFO
  • Ember
  • IRENA
  • World Bank
  • ECB
  • EEX
  • IEA
  • CSO Ireland
  • Epoch AI
  • ML.ENERGY

The data sources page gives each feed's licence, and each view's method note gives its units and window. Where a figure comes from a curated table, the view says that too.

Wattlas is open at wattlas.net

Free and public, with no sign-up to read it. Start from a question, or land on any view: each one explains itself.
